Denon PMA-1700NE

Denon PMA-1700NE Specification

Size
Standard Hi-Fi component size

Connectivity Type
RCA, USB-B, Optical, Coaxial

Frequency
20 Hz-20 kHz (0.1 dB)

Mounting Type
Tabletop/Stationary

Features
Advanced Ultra High Current MOS, Analog Mode, Source Direct, Precision Bass and Treble Controls, MM/MC Phono stage, Digital inputs, USB-DAC

Model
PMA-1700NE

Power Supply
AC 230 V, 50/60 Hz

Interface Type
Physical knobs/buttons, Remote control

Product Type
Integrated Amplifier

Application
Hi-Fi Home Audio

Dimension (L*W*H)
434 x 135 x 410 mm

Material
Metal chassis with Aluminum front panel

Weight
17.6 lbs (8.0 kg)

Total Harmonic Distortion
0.01% (Line)

Display
OLED input selector display

Digital Inputs
2 Optical, 1 Coaxial

Remote Control
Included (RC-1245)

Signal to Noise Ratio
110 dB (Line)

Headphone Output
Supported (6.3 mm jack)

Phono Input
MM/MC support

Impedance
8 Ohms

Speaker A/B Switching
Supported

USB-DAC Supported
PCM up to 384 kHz/32-bit, DSD up to 11.2 MHz

Output Power
70 W + 70 W (8 ohms, 20 Hz-20 kHz, THD 0.07%)

About Denon PMA-1700NE

Premium Grade 2 Ch x 140W (4 Ohms) Integrated stereo amplifier with Hi Res Audio, DAC Configuration, Advanced AL32 Processing , USB, 2 Opt & 1 Coaxial inputs, MM / MC Phono preamp. Bi wireable Gold Plated speaker Terminals

Seamless Digital and Analog Integration

The PMA-1700NE bridges the gap between traditional analog and cutting-edge digital sources. With two optical and one coaxial digital input, plus a USB-DAC supporting high-resolution formats up to PCM 384 kHz/32-bit and DSD 11.2 MHz, it effortlessly accommodates everything from turntables to high-resolution audio players.

Designed for Precision and Purity

Engineered with Advanced Ultra High Current MOS and a Source Direct function, the amplifier delivers outstanding signal fidelity, ensuring your music is reproduced with remarkable clarity and depth. Its exceptionally low total harmonic distortion (0.01%) and a high signal-to-noise ratio (110 dB) provide a pure and immersive listening experience.

Flexible Usage and Control Options

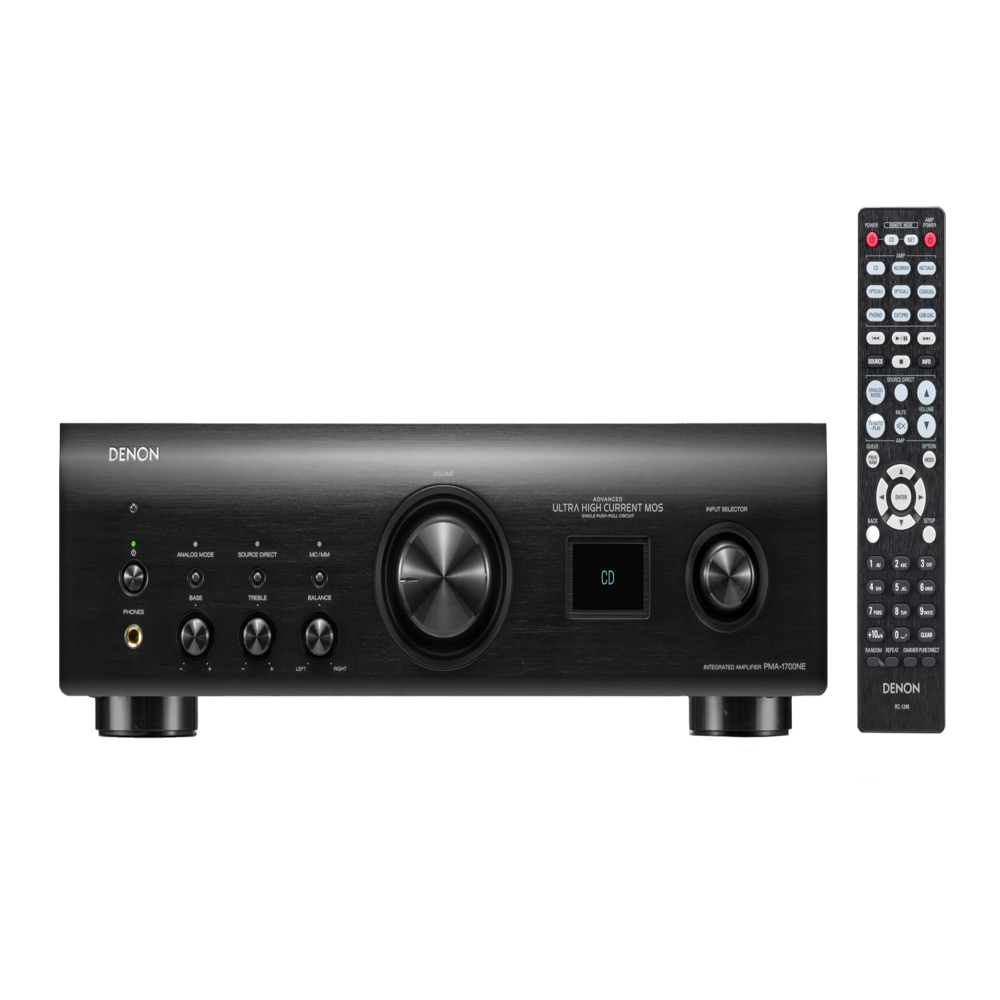

Enjoy full control of your audio setup with the included RC-1245 remote and the intuitive OLED display. The PMA-1700NE is built for both headphone listeners and full speaker setups, offering speaker A/B switching and a dedicated 6.3 mm headphone jack. The compact, sturdy design is finished with a premium aluminum front panel.

FAQ's of Denon PMA-1700NE:

Q: How do I connect my digital sources to the Denon PMA-1700NE?

A: The PMA-1700NE features two optical and one coaxial input for connecting digital audio devices such as CD players, as well as a USB-B input for PC audio, supporting high-resolution PCM and DSD files. Simply select the appropriate input using the OLED display or remote control.

Q: What types of turntables can I use with the PMA-1700NE?

A: This amplifier supports both MM (Moving Magnet) and MC (Moving Coil) phono cartridges, allowing you to connect a wide range of turntables directly to its dedicated phono input, ensuring superior analog sound performance.

Q: Where should I place the PMA-1700NE for optimal operation?

A: The PMA-1700NE is a tabletop/stationary component designed to fit standard Hi-Fi racks. Place it on a stable, flat surface with adequate ventilation to ensure reliable and safe operation.

Q: What is the process for switching between speaker sets or using headphones?

A: To alternate between Speaker A/B outputs or enable headphone listening, use the front panel controls or remote. Simply press the speaker selector button or insert your headphones into the 6.3 mm jack; the amplifier will automatically route the audio accordingly.

Q: What benefits does the Advanced Ultra High Current MOS technology provide?

A: Advanced Ultra High Current MOS technology offers improved power delivery and stable operation, resulting in more dynamic and clear sound. This feature helps maintain signal purity, supporting accurate audio reproduction even at higher volumes.

Q: How can I fine-tune the sound output on the PMA-1700NE?

A: The amplifier offers precision bass and treble controls accessible via physical knobs. For purer audio, enable the Source Direct mode to bypass tone controls, ensuring a more faithful reproduction of your source material.
