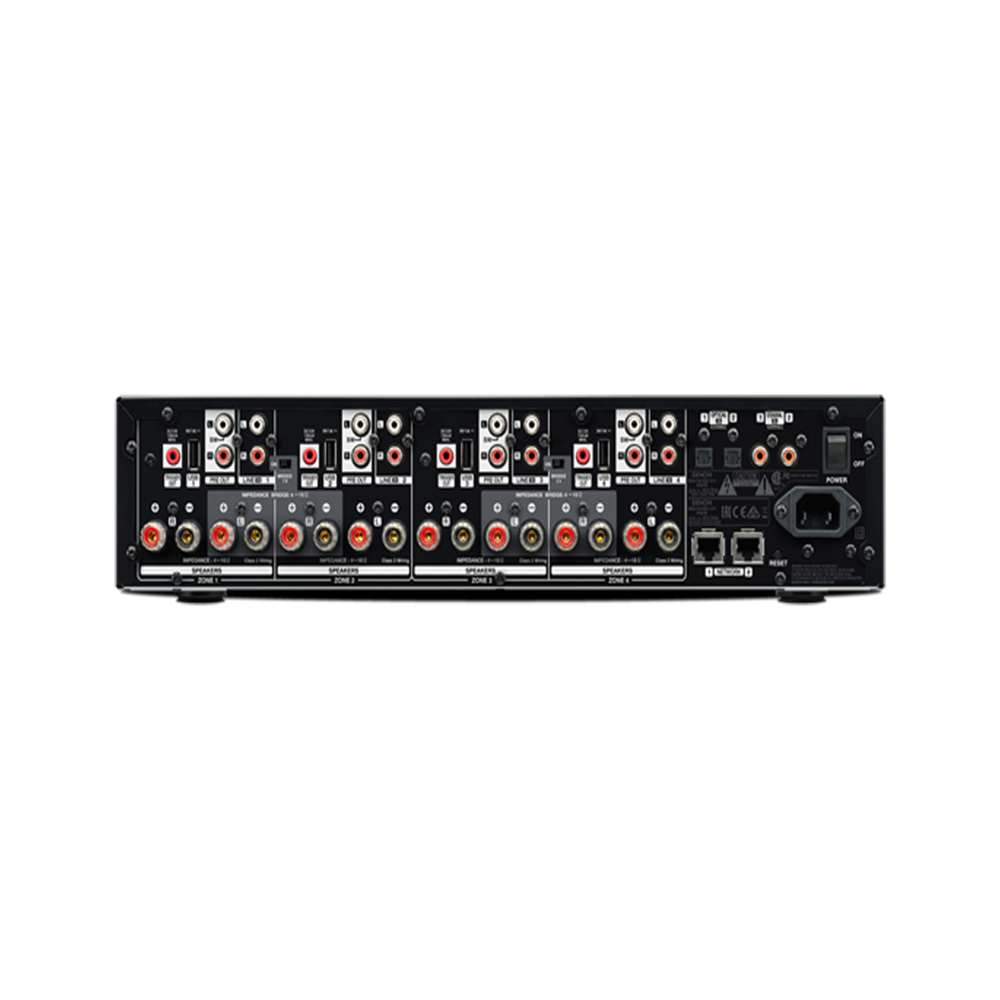

HEOS DRIVE

HEOS DRIVE Specification

Mounting Type
Rack mount (2U, 19-inch standard)

Range
Dependent on network infrastructure (Wi-Fi/Ethernet)

Model
HEOS DRIVE

Frequency
20Hz - 20kHz (+/- 1.5dB)

Size
2U rackmount

Features
Four zone multi-room audio, class D amplification, bridgeable zones, rack-mountable, HEOS app control, integration with home automation systems, dual RJ-45 LAN ports

Battery Backup
No battery - mains powered

Operating Temperature
5C - 35C

Connectivity Type
Ethernet, Wi-Fi, USB, Analog, Digital Optical/Coaxial

Interface Type
RJ-45, RCA, Speaker terminal, USB-A, IR, 12V trigger, Digital Optical/Coaxial

Power Supply
AC 100-240V, 50/60Hz

Product Type
Multi-zone Network Amplifier

Application
Multi-room audio distribution, home audio systems, commercial installations

Dimension (L*W*H)
438 x 344 x 90 mm

Material
Metal chassis with aluminum front panel

Weight
7.8 kg

Capacity
4 zones with stereo amplification

Coverage Area
Multiple zones (4 zone amplifier)

Wireless Standards
IEEE 802.11 a/b/g/n/ac

Audio Formats Supported
MP3, AAC, WMA, FLAC, WAV, ALAC, DSD

Digital Inputs
2 x Optical, 2 x Coaxial

Zone Control
Independently controllable 4 zones

Finish
Brushed black aluminum front panel

Speaker Outputs
Phoenix-type connectors

IR Inputs
4 discrete zone inputs

Trigger Outputs
4 x 12V

USB Inputs
1 x USB-A

Amplifier Power Output
60W per channel (8 ohms), 120W per channel (bridged 8 ohms)

Analog Inputs
4 x Stereo RCA pairs

Control Options
HEOS app, IR remote input, 12V trigger, third-party control systems

Network Ports
2 x RJ-45 Ethernet LAN

About HEOS DRIVE

8x 60 W, 8 Ch Wireless Streaming Music Amplifier , Stereo/Mono selectable output, Pre-amp outputs for each zone, Dolby Digital/Dolby Digital+ downmixing to stereo, Dual RJ-45 Ethernet LAN ports, Stream music stored locally on your iOS, Android smartphone or tablet, USB Port, 3rd party controllable, HEOS app.

Multi-Zone Audio Distribution

HEOS DRIVE empowers users with independent control of four audio zones, making it ideal for homes, offices, and commercial spaces where customized sound environments are desired. Each zone can be configured separately, allowing for personalized listening experiences in different rooms or areas.

Robust Connectivity Options

This amp accommodates an array of input and output connections, including Ethernet, Wi-Fi, USB, analog stereo, digital optical/coaxial, Phoenix-type speaker terminals, IR inputs, and 12V triggers. These options ensure compatibility with various audio sources, control systems, and installation requirements.

Flexible Control Integration

With support for the HEOS app, IR remote input, 12V trigger, and integration with third-party control systems, HEOS DRIVE provides versatile operation and easy integration into automated environments. Users enjoy straightforward setup, routine adjustments, and seamless multi-zone management.

FAQ's of HEOS DRIVE:

Q: How do I control the HEOS DRIVE in a multi-room audio setup?

A: You can manage the HEOS DRIVE using the HEOS app on your smartphone, IR remote input, 12V trigger, or through compatible third-party control systems. These options allow for flexible control and integration, tailored to the specific needs of your installation.

Q: What types of audio sources can I connect to the HEOS DRIVE?

A: The amplifier supports various audio formats, including MP3, AAC, WMA, FLAC, WAV, ALAC, and DSD. You can connect sources via USB-A, analog RCA pairs, digital optical and coaxial inputs, or stream wirelessly via Wi-Fi or Ethernet.

Q: When should I use the bridge mode for amplification?

A: Bridge mode should be used when you require higher power output for a specific zone, delivering 120W per channel at 8 ohms. This is especially beneficial for larger zones or speakers that demand more power for optimal performance.

Q: Where can the HEOS DRIVE be installed and mounted?

A: Designed for professional installations, the HEOS DRIVE can be rack-mounted in a standard 19-inch rack (2U size), suitable for home audio systems, multi-room setups, and commercial environments such as offices or hospitality venues.

Q: What is the process for integrating HEOS DRIVE with home automation systems?

A: HEOS DRIVE can be integrated with third-party automation platforms using its control interfaces-IR, 12V trigger, and Ethernet. Setup involves connecting these interfaces appropriately and configuring the system within your automation software for seamless zone control.

Q: How does HEOS DRIVE benefit multi-zone audio applications?

A: The device offers independently controllable four-zone audio with robust amplification, flexible connectivity, and straightforward integration. This enables users to customize and expand their audio environment for diverse needs in residential or commercial spaces.

Q: Does the HEOS DRIVE require battery backup or operate on mains power?

A: HEOS DRIVE operates on mains power (AC 100-240V, 50/60Hz) and does not include a battery backup. Make sure it's connected to a reliable power source for uninterrupted performance.
